BMD-A1Good Quality Children/Adult Dual-screen dual probe Ultrasound Bone Densitometer for Detecting Osteoporosis

Short Description:

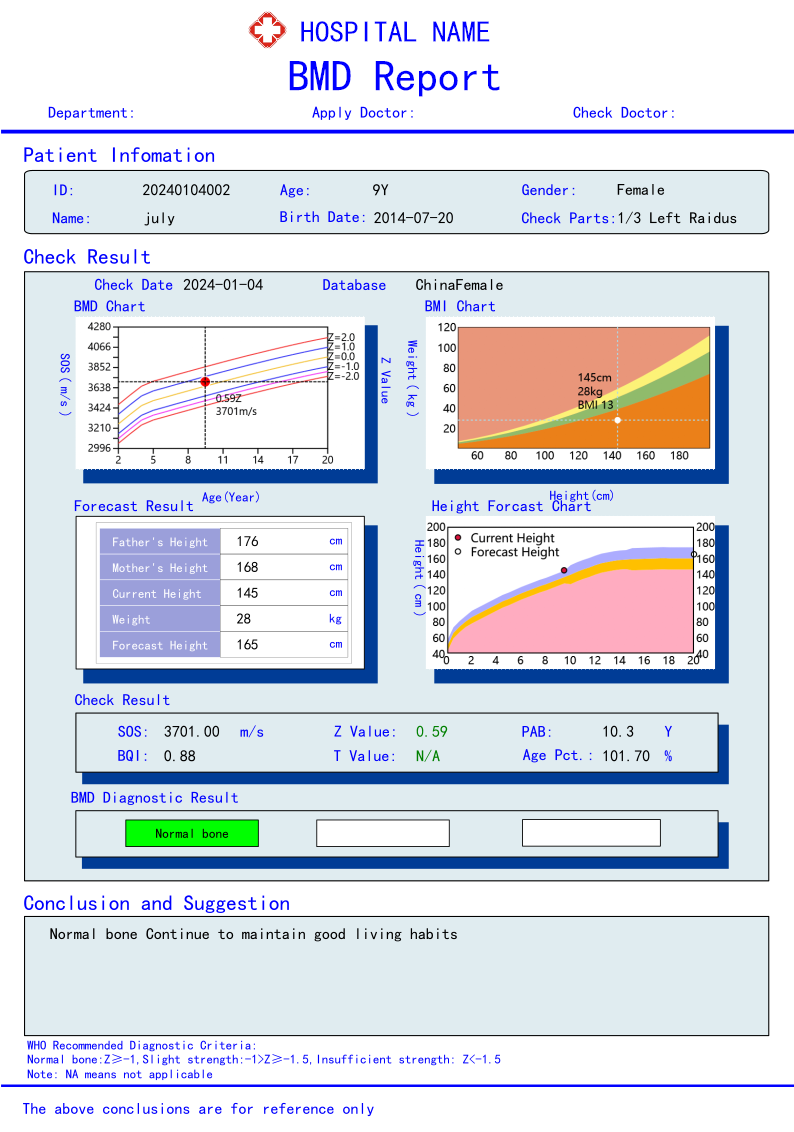

Ultrasound Bone Densitometer BMD-A1 measures bone density of human Radius and Tibia using ultrasound. The result is printed out with graph format chart from a Canon Color Ink-jet printer. Also will BMI and Height prediction in the report BMD is most suitable for screening test of osteoporosis.

Safe for the measurement of younger or pregnant person, with non-invasive nature of ultrasound.

Approx 15 seconds per measurement, suitable for screening test for osteoporosis.

Early Assessment of Osteoporosis.

No need for the patient to undress.

Ultrasound test, No ionizing radiation.

Scan can be performed by any trained operator.

Immediate printed report.

Most affordable, clinical test for osteoporosis.

Dual-screen and dual-probe configuration.

Send email to us

Product Detail

Product Tags

1. Measurement parts: radius and Tibia.

2. Measurement mode: double emission and double receiving.

3. Measurement parameters: Speed of sound (SOS).

4. Analysis Data: T- Score, Z-Score, Age percent[%], Adult percent[%], BQI (Bone quality Index ), PAB[Year] (physiological age of bone), EOA[Year] (Expected Osteoporosis age), RRF(Relative Fracture Risk). BMI.

5. Measurement Accuracy : ≤0.3%.

6. Measurement Reproducibility: ≤0.3%.

7. Measurement time: .

8. Probe frequency : 1.20MHz.

9. Date analysis : it adopt a special intelligent real –time data analysis system, it selects the adult or child databases according to the age automatically.

10. Temperature control: Perspex sample with temperature instructions.

11. Probe crystal indication: it display the working condition for the four crystal of the probe, and the signal strength for the ultrasonic reception.

12. Daily Calibration: automatic calibrating after power on.

13. All the people of the world. It measuring the people between the age Of 0 and 100,(Children: 0-12 years old, Teenagers: 12-20 years old, Adults:20-80 years old, The Elderly 80-100 yeas old, only need to input the age and recognizing automatically.

14. Temperature display calibration block: the calibration with pure copper and Perspex, the calibrator display current temperature and standard SOS. The equipment leave the factory with Perspex sample.

15. Repot mode: color.

16. Report format: supply A4, 16K ,B5 and more size report.

17. With HIS , DICOM, database connectors.

18. Computer configuration: original Dell business configuration: G3240, dual core, 4G memory, 500G hard disk, original Dell recorder., wireless mouse.

19. Computer Monitor: 20’ color HD color LED monitor.

20.Dual-screen and dual-probe configuration.
